Wooken Electric Bike, 20”X4.0 Fat Tire Electric Bike for

Product Overview

The Wooken Electric Bike is a high-performance, foldable e-bike designed for adults seeking versatility and power in one compact package. Built with a robust 48V 10Ah removable lithium battery and a peak 750W motor, this 20-inch fat tire electric bike delivers strong acceleration and extended range, making it ideal for commuting, camping trips, or exploring rugged terrain. Its foldable design ensures easy storage and portability, while the professional 7-speed gear system and dual shock absorbers provide smooth rides across snow, mountains, beaches, and city streets. Certified to UL 2849 and UL 2271 standards, this e-bike prioritizes safety, durability, and user comfort.

Key Features

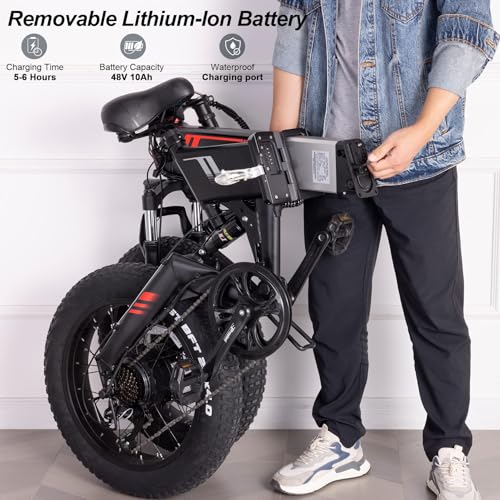

• Removable Built-in Lithium Battery: Equipped with a 48V 480Wh waterproof (IPX5) battery that offers a riding range of 25–30 miles in pure electric mode and up to 50–60 miles when using pedal-assist (PAS). The battery can be charged on or off the frame, offering flexibility for home or on-the-go charging.

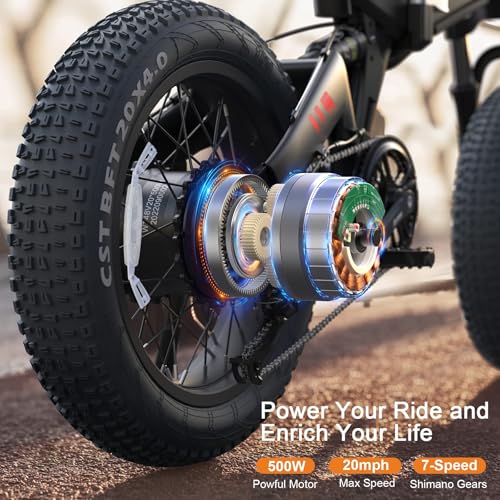

• Peak 750W Motor Power: Delivers reliable performance with a maximum speed of approximately 20 mph in mode 3, suitable for daily commutes and outdoor adventures. The powerful motor ensures consistent traction on challenging surfaces like sand, snow, and steep inclines.
• 20″ X 4.0 Fat Tires: Wide, anti-skid tires enhance stability and grip on diverse terrains including beaches, snowy paths, rocky trails, and urban roads, ensuring confident handling in various conditions.

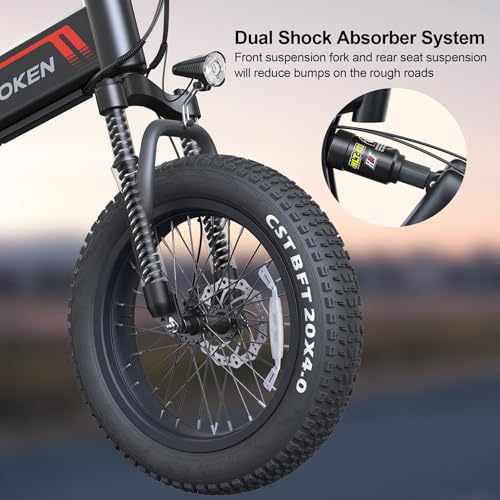

• Dual Shock Absorber System: Features both front suspension fork (lockable and adjustable) and rear seat suspension capable of absorbing up to 1000 lbs, significantly reducing impact from bumps and rough terrain for a smoother, more comfortable ride.
• Professional 7-Speed Gearing: Allows riders to adjust speed and effort based on terrain—easier pedaling uphill or faster cruising downhill—while optimizing battery efficiency during long-distance travel.

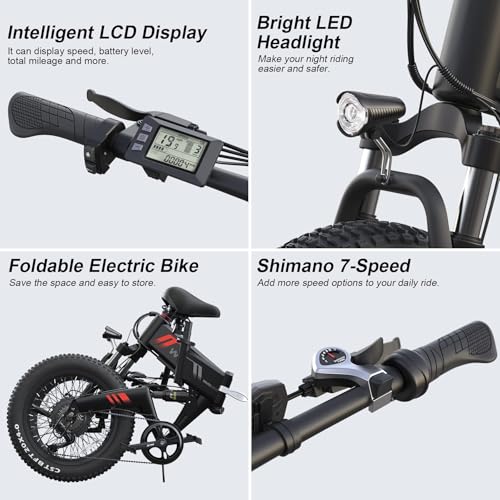

• Intelligent LCD Display: Provides real-time data such as speed, battery level, mileage, and mode selection, helping riders monitor performance and plan their journey effectively.

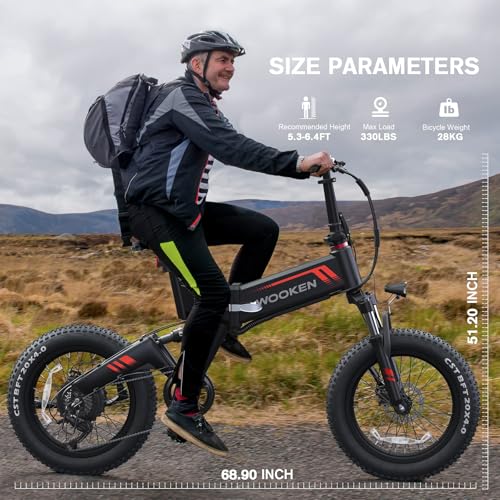

• Adjustable Handlebar & Seat: Handlebars adjust between 46.46″ and 51.18″, while the saddle height ranges from 36.61″ to 40.55″, catering to a wide range of rider heights (recommended for users 5’7″ to 6’9″).
• Bright LED Headlight: Ensures visibility and safety during nighttime rides, improving confidence and compliance with road safety standards.
• Foldable Design for Portability: Compact folded dimensions of 14.16″ x 21.24″ x 11.64″ make it easy to store in car trunks, closets, or under desks—perfect for urban dwellers and travelers.

Technical Specifications

• Battery: 48V 10Ah (480Wh), removable, IPX5 waterproof
• Motor: Peak 750W (continuous rated at 500W)
• Max Speed: ~20 mph (in mode 3)
• Tire Size: 20″ x 4.0″ fat tires
• Gears: Professional 7-speed transmission
• Frame: Foldable aluminum alloy construction
• Weight Capacity: Up to 1000 lbs (with dual suspension support)
• Saddle Height Range: 36.61″ to 40.55″
• Handlebar Height Range: 46.46″ to 51.18″
• Folded Dimensions: 14.16″ x 21.24″ x 11.64″
• Certifications: SGS Certified to UL 2849 and UL 2271
• Charging Options: On-bike or remove battery to charge

Benefits & Use Cases

This electric bike excels in diverse environments, from snow-covered trails and sandy beaches to hilly mountain paths and busy city streets. The combination of fat tires and dual suspension makes it exceptionally stable on loose or uneven ground, reducing fatigue during longer excursions. With a range of up to 60 miles in PAS mode, it supports day-long adventures without frequent recharging. Urban commuters benefit from its foldable size and quiet operation, while campers and outdoor enthusiasts appreciate its ability to handle off-road conditions safely. The adjustable components ensure a personalized fit for most adult riders, enhancing comfort and control.

Important Notes

Riding range may vary depending on rider weight, terrain difficulty, wind resistance, and usage mode. The battery provides 25–30 miles in full electric mode and 50–60 miles with pedal assistance. Always follow local traffic laws and wear appropriate protective gear when riding. For technical support or replacement parts, contact customer service via the email listed in the electronic manual or by scanning the QR code provided on the product details page. This model meets UL safety standards but should not be used beyond specified load limits.
